Complete Guide to Appliance Roto-Lugs: Lug Nuts, Bushings & Vintage Wheel Fitment
If you own a set of vintage Appliance wheels and are trying to figure out what lug nuts you need, you may have encountered an unusual mounting system known as the Appliance Roto-Lug.
Roto-Lugs are different from conventional cone-seat or standard mag-style lug nuts. Appliance wheels designed for this system use specialized lug nuts and bushings to properly position and secure the wheel to the vehicle.
Because these wheels are now decades old, the original mounting hardware is frequently missing, damaged or mismatched. Fortunately, replacement Appliance Roto-Lug nuts and bushings are available for enthusiasts restoring and installing these classic aftermarket wheels.
This guide explains how the Appliance Roto-Lug system works, how center and offset bushings differ, and what you should check before purchasing replacement Roto-Lug hardware.
What Are Appliance Roto-Lugs?
Appliance Roto-Lugs are specialized wheel fasteners originally associated with vintage aftermarket wheels manufactured by Appliance Industries, also known for its Appliance Plating wheels.
Unlike a conventional wheel where the stud passes through a relatively close-fitting hole, many Appliance Roto-Lug wheels have larger mounting openings designed to accommodate specialized hardware.
The Roto-Lug system was particularly useful because certain Appliance wheels could accommodate multiple bolt patterns.
Rather than manufacturing a completely different wheel for every vehicle bolt circle, Appliance could use specially designed mounting hardware to position the wheel studs within the wheel's larger lug openings.
That flexibility made Roto-Lug wheels useful for a wide range of American muscle cars, hot rods, customs and other vehicles.
Today, however, that unusual design can make finding replacement hardware confusing.
How Does an Appliance Roto-Lug Work?
A Roto-Lug installation involves more than simply matching the thread size of the vehicle's wheel studs.
Depending on the version of the system, the mounting hardware positions the vehicle's wheel studs within the oversized lug openings in the wheel.

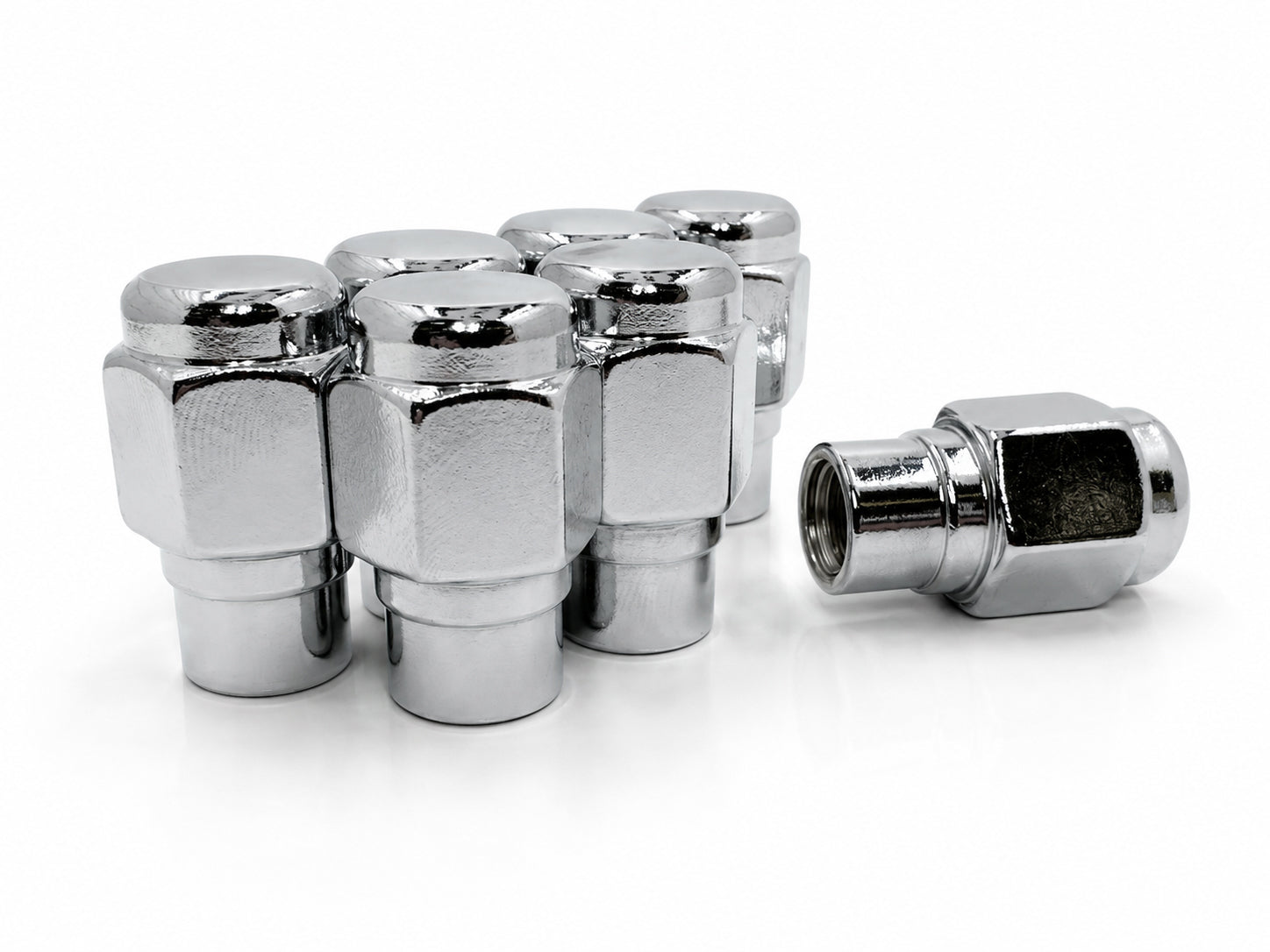

Modern replacement systems typically use a step-mag style Roto-Lug nut combined with a matching Roto-Lug bushing.
The bushing fits into the mounting opening of the Appliance wheel, while the specially shaped lug nut passes through the bushing and threads onto the vehicle's wheel stud.
The components work together to properly locate and clamp the wheel.
This is why an ordinary mag lug nut and washer should not automatically be substituted for genuine Roto-style hardware.
Center-Hole vs. Offset-Hole Roto-Lug Bushings
One of the most important parts of identifying the correct Appliance Roto-Lug hardware is determining whether your wheels require a center-hole or offset-hole bushing.
Although the two styles may look similar at first glance, their geometry is significantly different.
Center-Hole Roto-Lug Bushings
A center-hole Roto bushing has the wheel-stud opening positioned directly in the center of the bushing.
The stud therefore passes through the centerline of the wheel's larger mounting opening.
Center-hole bushings are commonly associated with certain 5x120.7mm (5x4.75-inch) applications.
The correct application ultimately depends on the particular Appliance wheel, vehicle bolt pattern and Roto-Lug configuration.
Offset-Hole Roto-Lug Bushings
An offset-hole Roto bushing has its stud opening positioned away from the centerline of the bushing.
That eccentric design is an important part of what makes the Roto-Lug system unusual.
Rotating the offset bushing changes the location of the vehicle's wheel stud within the larger mounting opening of the wheel.
This allows certain Appliance wheels to accommodate different bolt circles.
Offset bushings are commonly used with applications including 5x114.3mm (5x4.5-inch) and 5x127mm (5x5-inch) bolt patterns, depending on the wheel and application.
Because the location and orientation of the bushing are critical to proper installation, you should never assume that a center and offset bushing are interchangeable.
Roto-Lugs vs. Standard Mag Lug Nuts
Vintage Appliance wheels can easily be mistaken for wheels that use conventional mag-style lug nuts.
Both systems may have large lug openings and use lug nuts with extended shanks. However, their mounting hardware is not necessarily interchangeable.
A conventional mag lug typically uses a straight shank that passes through the wheel and clamps against a flat washer.
An Appliance Roto step-mag system instead uses a specially shaped lug nut designed to work with its corresponding Roto bushing.
This distinction is important.
Installing an incorrect lug nut simply because it has the correct thread size does not guarantee that the wheel will be properly located or clamped.
The wheel-stud thread, lug nut, bushing and wheel mounting opening must all be compatible.
What Thread Sizes Are Available for Replacement Roto-Lugs?
Replacement Appliance Roto step-mag lug nuts are available in several popular wheel-stud thread sizes.
- 7/16-20 Roto-Lug nuts
- 1/2-20 Roto-Lug nuts
- 12x1.25 Roto-Lug nuts
- 12x1.5 Roto-Lug nuts
The correct thread size is determined by the wheel studs on your vehicle—not simply by the wheel.
For example, two vehicles could potentially use the same Appliance wheel and bushing configuration but have different wheel-stud threads.
Always verify the thread diameter and thread pitch before ordering replacement lug nuts.
How to Identify the Correct Appliance Roto-Lug Hardware
If you have vintage Appliance wheels but no original mounting hardware, don't select replacement lug nuts based on appearance alone.
Several measurements and specifications should be verified.
- Identify the wheel. Confirm that the wheel is an Appliance wheel designed for Roto-Lug hardware. Look for manufacturer markings, casting information or other identifying features on the back side of the wheel.
- Determine your vehicle's bolt pattern. Know the vehicle's wheel bolt circle, such as 5x4.5, 5x4.75 or 5x5.
- Determine the wheel-stud thread. Common examples include 7/16-20, 1/2-20, 12x1.25 and 12x1.5.
- Examine the wheel's lug openings. The diameter, depth and shape of the mounting openings can help determine which Roto hardware is required.
- Determine whether you need center or offset bushings. The required bushing depends on the wheel and bolt-pattern application.
If you're uncertain, taking accurate measurements before ordering can save considerable time.
Why Correct Roto-Lug Fitment Matters
Wheel fasteners perform a critical job.
Their purpose isn't simply to keep a wheel from falling off. Properly designed and installed wheel fasteners generate the clamping force that holds the wheel securely against the vehicle's hub or mounting surface.
Using incorrect hardware can interfere with proper seating and clamping.
With vintage wheels, this deserves additional attention because wheels may have been modified or used with incorrect hardware sometime during their history.
Before installing used Appliance wheels, inspect the lug openings for:
- Elongated or damaged mounting holes
- Cracks around the lug openings
- Evidence of drilling or grinding
- Incorrect washers or bushings
- Damaged seating surfaces
- Excessive wear
- Previously installed mismatched hardware
If the wheel itself is damaged, replacing the lug nuts will not correct the underlying problem.
Can I Use Regular Lug Nuts on Appliance Roto-Lug Wheels?
If the wheel was designed for the Appliance Roto-Lug system, standard cone-seat lug nuts should not be substituted simply because they fit the vehicle's wheel studs.
Likewise, an ordinary mag lug nut and washer shouldn't be assumed to be a suitable replacement.
The Roto system relies on the dimensions and geometry of the lug nut and bushing as well as the thread size.
A lug nut can thread perfectly onto a wheel stud and still be completely wrong for the wheel.
When dealing with vintage aftermarket wheels, always identify the required seat, shank, bushing and thread configuration before installation.
Are Appliance Roto-Lugs the Same as Uni-Lug Lug Nuts?
No.
Although Roto-Lug and Uni-Lug systems were both developed to allow aftermarket wheels to fit multiple vehicle applications, the hardware is different.
Traditional Uni-Lug wheels commonly use elongated wheel openings with oval or offset washers. Different washer positions allow the studs to align with different bolt circles.
The Appliance Roto-Lug system uses its own specialized mounting arrangement.
Therefore, finding a lug nut or washer advertised for a "multi-fit" or "Uni-Lug" wheel doesn't necessarily mean it will fit an Appliance Roto-Lug wheel.
Restoring Vintage Appliance Wheels
Appliance wheels remain popular with owners of classic muscle cars, street machines, hot rods and period-correct restorations.
Finding a nice set of vintage wheels is only part of the project, though.
Correct mounting hardware is equally important.
If the original Roto-Lugs disappeared decades ago, replacement Roto step-mag lug nuts and bushings can make it possible to put these classic wheels back into service while maintaining the mounting system they were designed to use.
Before ordering, identify:
- Wheel manufacturer and style
- Vehicle bolt pattern
- Wheel-stud thread size
- Lug-hole dimensions
- Center or offset bushing requirement
- Required lug-nut dimensions
Never rely solely on vehicle year, make and model when fitting vintage aftermarket wheels.
Shop Appliance Roto-Lug Nuts and Bushings
Lug Nut Guys carries replacement Appliance Roto-Lug hardware for vintage Appliance wheels, including step-mag style Roto lug nuts and matching bushings.
Available hardware includes multiple popular thread sizes as well as center-hole and offset-hole Roto bushings for different wheel and bolt-pattern configurations.
If you've been searching for hard-to-find mounting hardware for an old set of Appliance wheels, start by identifying your wheel-stud thread, bolt pattern and required bushing style.
Frequently Asked Questions About Appliance Roto-Lugs
What is an Appliance Roto-Lug?
An Appliance Roto-Lug is specialized mounting hardware used with certain vintage Appliance aftermarket wheels. The system uses specially designed lug nuts and locating hardware rather than conventional cone-seat lug nuts.
Why do Appliance wheels have such large lug holes?
Certain Appliance wheels were designed around a multi-fit mounting system. The larger openings provide room for specialized Roto hardware that positions the wheel studs for the required bolt pattern.
What is an offset Roto bushing?
An offset Roto bushing has a stud opening that isn't centered in the bushing. Its eccentric position allows the vehicle's wheel stud to sit at a different location within the wheel's mounting opening.
What is a center Roto bushing?
A center Roto bushing places the vehicle's wheel stud in the center of the wheel's Roto-Lug opening.
Can I replace Roto-Lugs with regular mag lug nuts?
You should not assume a conventional mag lug nut is interchangeable. The lug nut must have the correct thread, dimensions, shank configuration and seating arrangement for the wheel.
What size Appliance Roto-Lug do I need?
First determine the thread size of your vehicle's wheel studs. Replacement Roto-Lugs are available in common sizes including 7/16-20, 1/2-20, 12x1.25 and 12x1.5. You must also verify that the lug dimensions and bushing configuration are correct for your Appliance wheels.
Where can I buy replacement Appliance Roto-Lugs?
Lug Nut Guys carries replacement Appliance Roto step-mag lug nuts and Roto bushings for vintage Appliance wheel applications.
